100-Watt Fiber Industrial Laser Printer for Marking highly legible, permanent codes at ultra-fast line speeds.
The Videojet 7610 100-Watt fiber laser marking system leverages the proven and extremely successful fiber product line from Videojet. The laser marking system now delivers extended speed capabilities to mark crisp, clear codes on robust plastic packaging, metal containers and other industrial products at up to 600m/min. The 7610 laser has been specifically engineered for high speed beverage, pharmaceutical, and extrusion manufacturers marking on robust materials such as high-density Polyethylene (HDPE), Nylon, Polyvinyl Chloride (PVC), as well as aluminum and stainless steel metals.
- Specs
- Benefits
- Applications
- Documents
| Value | |
| Laser Tube | Ytterbium (Yb) pulsed fiber laser |
| Maximum Power | 100-Watt |
| Laser Cooling | Air Cooled |
| Maximum Line Speed | 600m/min (1968 ft/min) |
| Environmental Protection | Marking Unit: IP54 Supply Unit: IP22 |
| Beam Output | Steered Beam |
| Laser Source Expected Life (MTBF) | Up to 100,000 hours (MTBF) |
| Laser Wavelength Options | 1.06µm – 1.07µm |
| Focal Distance Options | 100/163/254/420mm (3.93/6.41/10/16.53in) |
| Maximum Mark Window | 498.5 x 366.5 mm (19.62 x 14.43 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Smartgraph PC software |
| Certifications/Approvals | CE TUV |
Uptime advantage through highly efficient laser source
- Maximum performance and laser source life expectancy up to 100,000 hours (mean time before failure)
- Air-cooled laser source virtually eliminates maintenance intervals
- No wear parts minimizes downtime
Increase productivity and mark more content at higher speeds
- Optimized to mark-on-the-fly at lines speeds up to 600 m/min
- Large marking window provides more time to mark, increasing throughput and maximizing productivity
Mark the right codes time after time
- High precision scan head delivers consistent high quality codes across the entire mark window
- Permanent codes help assure product traceability and tamper-proofing
Simple usability and seamless integration
- Compact mechanical design with flexible configuration options ensure a seamless fit into packaging line
- Brochures
- Application Notes
Videojet 7610
Spec sheet

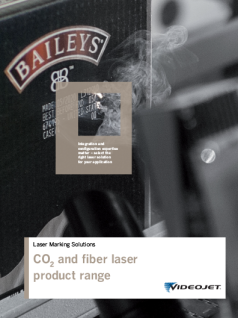

Laser Product Range Brochure
Videojet Fiber Laser Sample Marking Guide
Meeting regulatory requirements and helping protect valuable cosmetic brands
