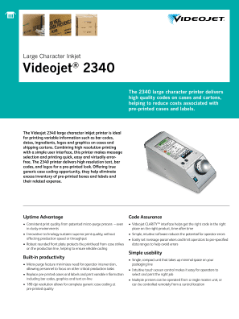

Videojet® 2340

The Videojet 2340 high-resolution, large character inkjet printer provides class-leading, consistent print quality on porous and secondary packaging materials. This system is designed and manufactured to reliably print durable, high-quality codes, bar codes and graphics. The Videojet 2340 replaces preprinted boxes and labels with highly flexible, cost effective print-on-demand solution.

Specification
Value
Print Speed
     Bar Code Printing 0.3 - 66 m/min (1.0 - 216 ft/min)
     Alphanumeric Text Up to 132 m/min (433 ft/min)
Print Area (Height x Length)
     2340 Model 17 x 2000 mm (0.7 x 78 in)
Printheads
     2340 Model 17 mm (0.7 in) high 180 dpi
User Interface CLARiTY™ 5.7 inch color LCD touch-panel
Data Interfaces RS232, Ethernet, USB memory stick, select ZPL command emulation,
Binary and text comms
Master/Follower Functionality Up to 4 printers

Consistent print quality protects supply chain integrity:
  • Patented micro-purge process automatically purges ink in programmable intervals to help keep the printhead free of dust and debris, helping to ensure the best print quality
  • Scannable bar codes can be printed on-demand, including GS1 standards for ITF-14 and Code 128
  • Videojet pigmented inks, available in a variety of colors, provide good edge acuity
Uptime Advantage and built-in productivity save time and money:
  • Begin printing within one minute of powering up for quick daily startups
  • Micro-purge process and fluid container design help ensure very high ink utilization, minimizing ink waste and mess, while saving money
  • Print density can be optimized on a per job basis to optimize operating costs and to allow standardization on one printer type for both high and moderate print quality applications
Simple Usability keeps operators focused on production, not the printer:
  • Printer can operate in standalone mode using intuitive interface or be networked to PLCs or factory management systems for centralized control
  • Data interfaces include Ethernet, RS232, USB, select ZPL command emulation, and text communication
  • Connect packaging and printer controllers for web browser functionality of standalone machines
  • Master/follower functionality allows up to four printheads to be controlled from one controller for more efficient job management
Seamless integration with other Videojet products:
  • Single point message selection is delivered to multiple devices
  • CLARiNET™️ software connects all Ethernet devices, scanners, throughout the production floor

Additional Applications
